Bronze/Steel/Iron Casting Valve

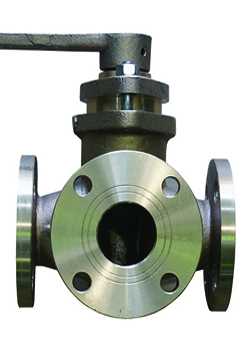

BRONZE FLANGED COCKS

- 5kg/㎠ I JIS F 7427

- Size: 25mm ~ 65mm

- Face to Face: 130 ~ 220

- Flange[Dia]: 95 ~ 155

- Height: 105 ~ 201

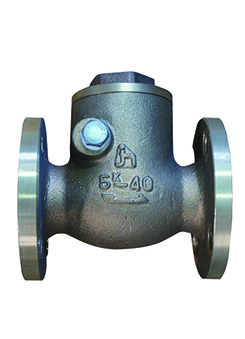

BRONZE SWING CHECK VALVE

- 5kg/㎠ I JIS F 7427

- Size: 25mm ~ 40mm

- Face to Face: 95 ~ 140

- Flange[Dia]: 95 ~ 120

- Height: 69 ~ 93

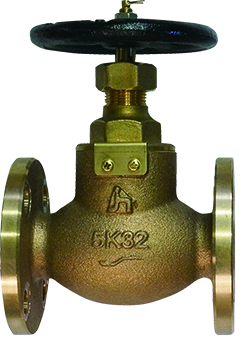

BRONZE GLOBE VALVE

- 5,16kg/㎠ I JIS F 7427

- Size: 15mm ~ 65mm

- Face to Face: 100 ~ 250

- Flange[Dia]: 80 ~ 155

- Height: 130 ~ 260

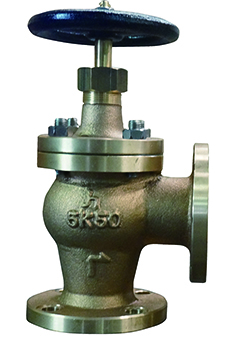

BRONZE ANGLE VALVE/CHECK

- 5,16kg/㎠ I JIS F 7427

- Size: 15mm ~ 65mm

- Face to Face: 50 ~ 115

- Flange[Dia]: 80 ~ 155

- Height: 120 ~ 165

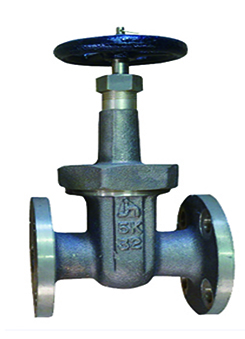

BRONZE RISING STEM GATE VALVE

- 5,16kg/㎠ I JIS F 7427

- Size: 15mm ~ 40mm

- Face to Face: 90 ~ 150

- Flange[Dia]: 80 ~ 140

- Height: 175 ~ 290

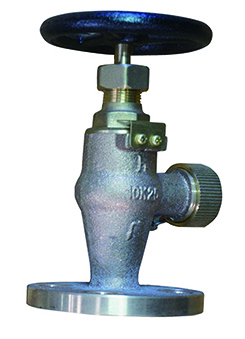

BRONZE HOSE VALVE

- 5,16kg/㎠ I JIS F 7427

- Size: 15, 25, 40, 50, 65mm

- Size: 15, 25, 40, 50, 65mm

- Flange[Dia]: 80, 95, 105, 130

- Height: 80, 125, 140, 160, 200

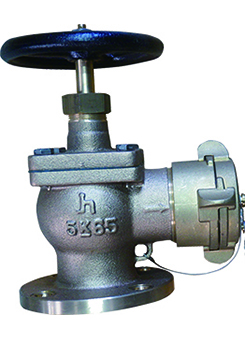

BRONZE COMPACT HYDRANT VALVE

- 5,10,16kg/㎠

- Size: 50, 65mm

- Pcd: 120, 140

- Flange[Dia]: 155, 175

- Bolt Hole: 4 - 19


BRONZE GATE VALVE FOR ULTRA HIGH POWER

- 5,10,16kg/㎠

- Size: 50mm ~ 600mm

- Height: 285 ~ 1185

- Length: 180 ~ 470

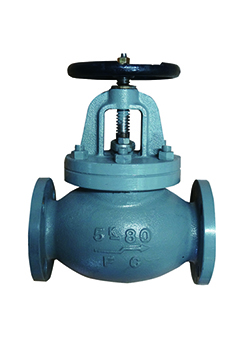

CAST IRON GLOBE/CHECK VALVE

- 5,10,16kg/㎠ I JIS F 7425

- Fluid: Steam,Air,Gas,Oil etc

- Weight: 14.7 ~ 647kg

- Height: 270 ~ 940

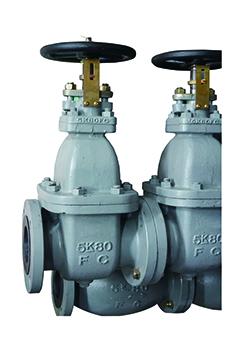

CAST IRON GATE VALVE

- 5,10,16kg/㎠ I JIS F 7425

- Size: 25, 50MM

- Dia: 25, 50

- Length: 100, 140

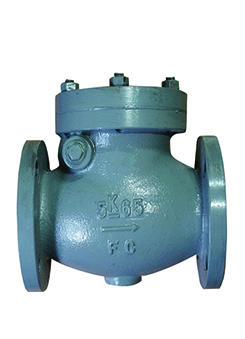

CAST IRON SWING-CHECK VALVE

- 5,10kg/㎠ I JIS F 7425

- Size: 50mm ~ 300mm

- Fluid: Oil,Pulsation Water

- Weight: 9.1 ~ 295kg

- Height: 97 ~ 385

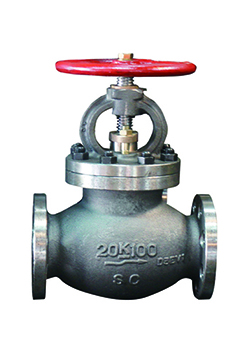

CAST STEEL GLOBE/CHECK VALVE

- 5,10,20kg/㎠ I JIS F 7426

- Size: 50mm ~ 300mm

- Fluid: Steam,Air,Gas,Oil etc

- Height: 270 ~ 930

- Weight: 16.2 ~ 370kg

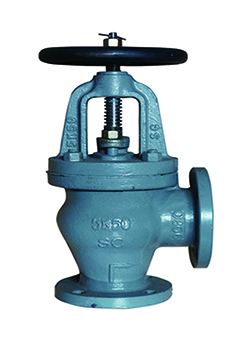

CAST STEEL ANGLE/CHECK VALVE

- 5,10,20kg/㎠ I JIS F 7426

- Size: 50mm ~ 300mm

- Fluid: Steam,Air,Gas,Oil etc

- Height: 240 ~ 750

- Weight: 12.9 ~ 283kg

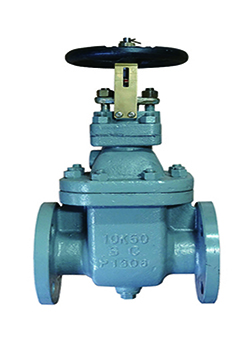

CAST STEEL GATE VALVE

- 5,10kg/㎠ I JIS F 7426

- Size: 50mm ~ 800mm

- Fluid: Steam,Air,Gas,Oil etc

- Height: 300 ~ 2050

- Weight: 200 ~ 800kg


CAST STEEL SCREW-DOWN VERTICAL/ANGLE STORM VALVE

- 5,10kg/㎠ I JIS F 3060

- Size: 50mm ~ 150mm

- Fluid: Non-Shock Water

- Height: 131 ~ 212

- Weight: 170 ~ 360kg
